eAce — EMBEDDED ACE PLC

Ace controls your product. eAce becomes part of it.

eAce is the embedded version of the Ace PLC—giving you the same Ace control platform in a form designed to integrate directly into your hardware. Choose a standard Ace for conventional machine wiring, or eAce when you want the same control platform integrated directly into your hardware.

Choose a Standard Ace Choose your eAce

Same Ace control platform. Different hardware integration.

Free U.S. shipping $99+ 30-day returns 1-year hardware warranty

FROM PLC TO PRODUCT

From PLC to product

Build your control system

Choose the Ace configuration your machine needs and develop the complete control application.
Choose your production architecture

Keep Ace as the production controller, or choose eAce when tighter packaging, reduced wiring, or custom electronics make integration worthwhile.
Integrate when it makes sense

eAce brings the same control platform into your custom motherboard alongside the circuitry unique to your product.

Customer example

DUVALL ESPRESSO

Espresso equipment built around eAce.

Duvall Espresso developed the machine’s water flow, heating, buttons, lights, and touchscreen communication with the Ace control platform. eAce integrates that same control system into the custom motherboard alongside the circuitry unique to the espresso equipment.

The eAce Advantage

Proven control, integrated into the product.

eAce supplies the Ace processing, I/O, motion, and communications core on the board. Relays, fuses, power interfaces, field connections, and circuitry unique to the espresso system live on the custom motherboard around it.

Same Ace controls Develop the control application on the Ace platform
Reuse the control project Keep the same vBuilder project across Ace and eAce
Design only what is unique Add protection, power interfaces, connectors, and custom circuitry

Select eAce

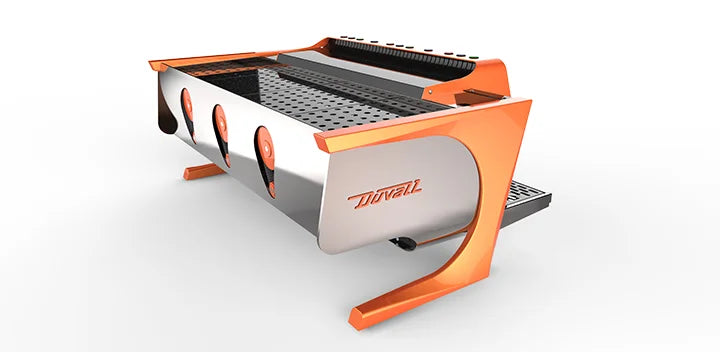

Finished Duvall Espresso commercial espresso system — The finished Duvall Espresso system.

See the machine in operation.

Inside the machine

Your control board, built around the Ace platform.

This is the part of the system your customer never sees—but your engineering team depends on. Drag to explore how eAce integrates directly into Duvall Espresso’s custom control board.

Drag to rotate

Same Ace. Different connection.

Ace and eAce provide the same control hardware and run the same vBuilder project. The difference is how they connect to your system: Ace provides field-wiring terminals; eAce uses board-level headers to plug directly into your hardware.

Standard Ace

eAce

Format

Complete PLC with field-wiring terminals

Same Ace hardware with board-level headers

Connection

Removable field-wiring terminals

0.1" board-level headers

Best when

Conventional machine wiring matters

Custom motherboard integration matters

Control platform & software

Ace + vBuilder

Same Ace platform + same vBuilder project

Model selection

Choose the eAce that matches your Ace.

Ace and eAce models share the same control configurations. Choose the eAce that matches the I/O, analog, temperature, and communications requirements of your application, then use the current eAce datasheet when designing your motherboard.

Model Digital In Digital Out Analog In Analog Out Thermocouple / Diff Serial Price Qty / Add

Digital In Digital Out Analog In Analog Out Thermocouple / Diff Thermocouple Serial

eAce 11 Standard Ace counterpart

Digital In 6 Digital Out 6 Analog In - Analog Out - Thermocouple / Diff Thermocouple - Serial -

$59

eAce 1430 Standard Ace counterpart

Digital In 6 Digital Out 12 Analog In - Analog Out - Thermocouple / Diff Thermocouple - Serial 1 RS232/485

$115

eAce 1450 Standard Ace counterpart

Digital In 6 Digital Out 12 Analog In - Analog Out - Thermocouple / Diff Thermocouple 2 Serial 1 RS232/485

$145

eAce 1600 Standard Ace counterpart

Digital In 3 Digital Out 6 Analog In - Analog Out - Thermocouple / Diff Thermocouple - Serial 1 RS232

$75

eAce 1630 3 ranges Choose analog range Standard Ace counterpart

Digital In 3 Digital Out 3 Analog In 3 Choose an input range to add Analog Out - Thermocouple / Diff Thermocouple - Serial 1 RS232

$89

eAce 1700 Standard Ace counterpart

Digital In 12 Digital Out 24 Analog In - Analog Out - Thermocouple / Diff Thermocouple - Serial -

$155

eAce 1701 Standard Ace counterpart

Digital In 8 Digital Out 24 Analog In - Analog Out - Thermocouple / Diff Thermocouple - Serial 1 RS232

$165

eAce 1800 Standard Ace counterpart

Digital In 18 Digital Out 18 Analog In - Analog Out - Thermocouple / Diff Thermocouple - Serial -

$155

eAce 1801 Standard Ace counterpart

Digital In 14 Digital Out 18 Analog In - Analog Out - Thermocouple / Diff Thermocouple - Serial 1 RS232

$165

eAce 1802 Standard Ace counterpart

Digital In 18 Digital Out 14 Analog In - Analog Out - Thermocouple / Diff Thermocouple - Serial 1 RS232

$165

eAce 22 Standard Ace counterpart

Digital In 12 Digital Out 12 Analog In - Analog Out - Thermocouple / Diff Thermocouple - Serial -

$109

eAce 222 3 ranges Choose analog range Standard Ace counterpart

Digital In 12 Digital Out 12 Analog In 12 Choose an input range to add Analog Out - Thermocouple / Diff Thermocouple - Serial -

$179

eAce 3090 3 ranges Choose analog range Standard Ace counterpart

Digital In 6 Digital Out 18 Analog In 3 Choose an input range to add Analog Out - Thermocouple / Diff Thermocouple 4 Serial 1 RS232

$215

eAce 5150 3 ranges Choose analog range Standard Ace counterpart

Digital In 12 Digital Out 12 Analog In 3 Choose an input range to add Analog Out - Thermocouple / Diff Thermocouple - Serial 1 RS232

$165

eAce 7092 3 ranges Choose analog range Standard Ace counterpart

Digital In 6 Digital Out 12 Analog In 4 Choose an input range to add Analog Out 2 12-bit Thermocouple / Diff Thermocouple 4 Serial 2 RS232

$279

eAce 7096 3 ranges Choose analog range Standard Ace counterpart

Digital In 6 Digital Out 12 Analog In 4 Choose an input range to add Analog Out 2 16-bit Thermocouple / Diff Thermocouple 4 Serial 2 RS232

$299

eAce 5190 3 ranges Choose analog range Standard Ace counterpart

Digital In 12 Digital Out 12 Analog In 9 Choose an input range to add Analog Out - Thermocouple / Diff Thermocouple - Serial 1 RS232

$165

HARDWARE INTEGRATION

Design eAce into your hardware.

1 — Select your eAce

Choose the eAce configuration that provides the I/O, communications, sensing, and motion capabilities your machine requires.

2 — Design your motherboard

Integrate the eAce headers into your PCB and add the relays, fuses, connectors, power distribution, and application-specific circuitry your product needs.

3 — Build and verify

Assemble the system, verify the electrical design, and test the complete machine with your production hardware.

SAME DEVELOPMENT WORKFLOW

Same vBuilder project. Different hardware integration.

Standard Ace and eAce use the same vBuilder programming environment. Move between the two hardware formats without changing PLC platforms or rebuilding your control application around a different controller.

Explore vBuilder
