- Display
- 4.3 in
- Resolution
- 480 x 272
- Brightness
- 400 cd/m²
- Ethernet
- No

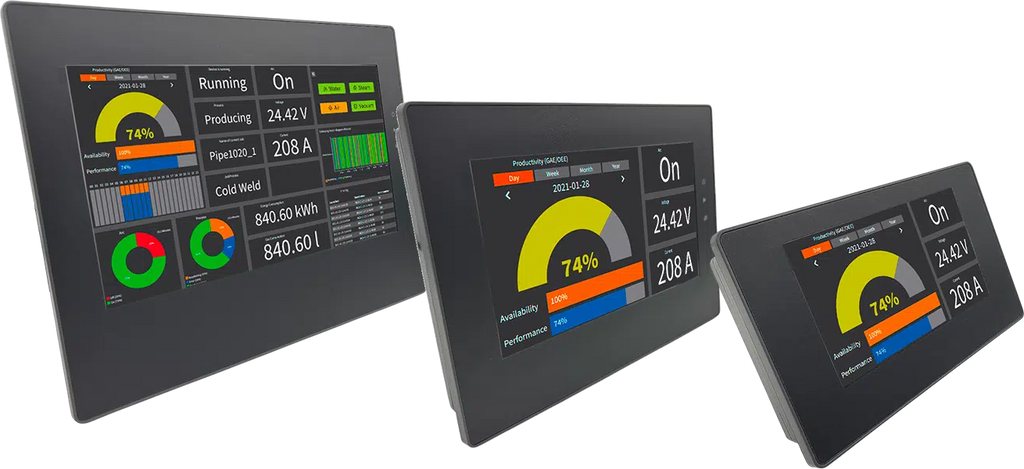

Command HMIs
HMI-043U2S
$99.00
Sale price
$99.00
Regular price
Skip to product information
Updates with selection
Command HMIs
$99.00
Sale price
$99.00
Regular price

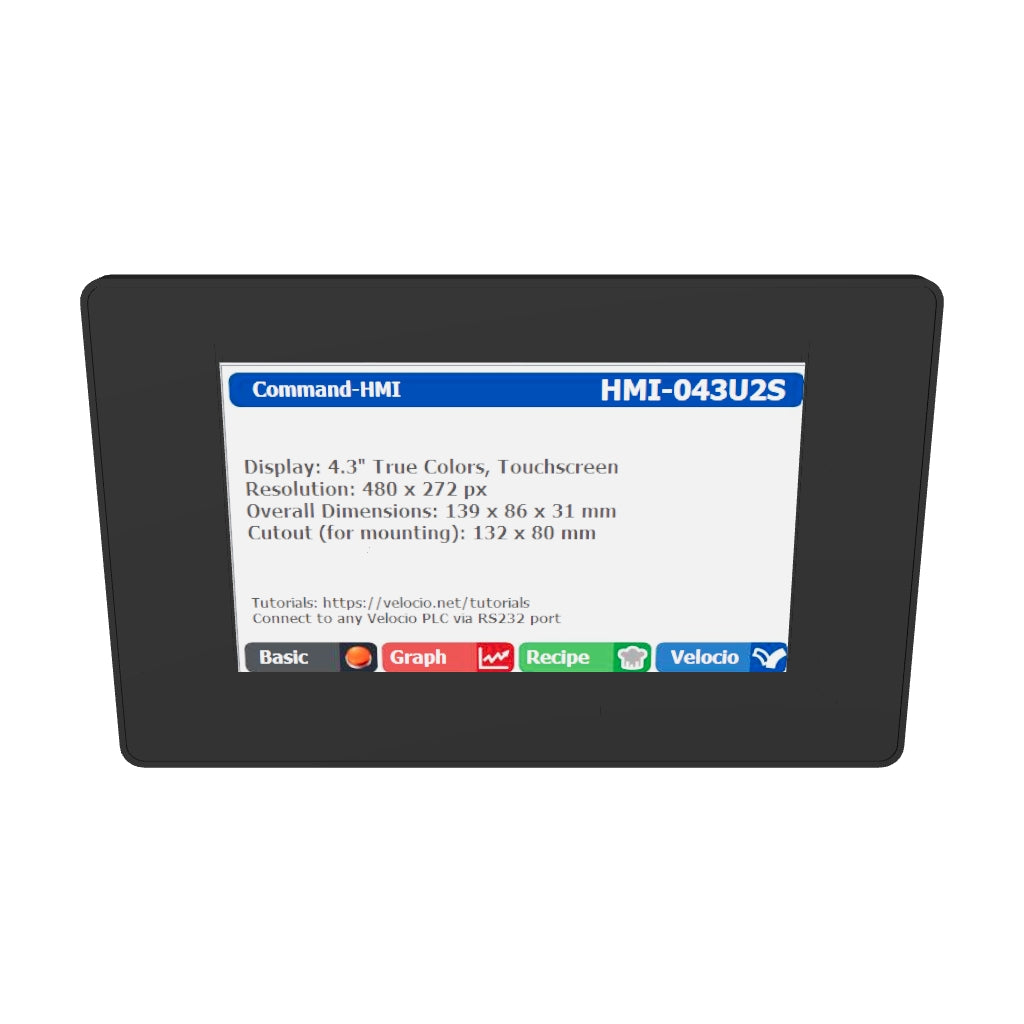

Selected model
HMI-043U2S
SKU HMI-043U2S
Specifications applied to HMI-043U2S are shown below.
- Backlight
- LED
- Brightness
- 400 cd/m²
- Colors
- 16.77M
- Contrast
- 400:1
- Display size
- 4.3 in
- Resolution
- 480 x 272
- Touch panel
- Resistive
Specifications update automatically when you choose another variant.
Find the right Command HMI.
A 3D drawing is not available for this model yet.

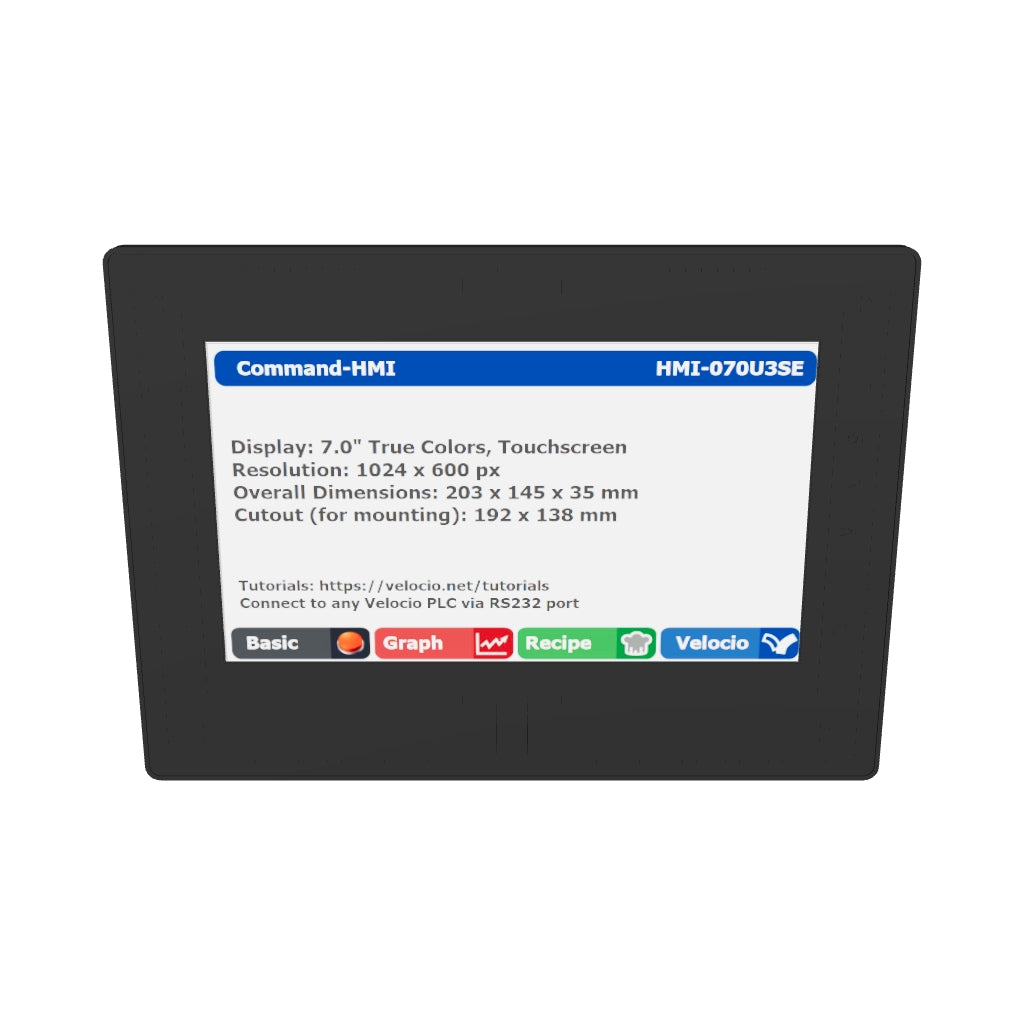

- Display
- 7.0 in
- Resolution
- 1024 x 600
- Brightness
- 450 cd/m²
- Ethernet
- Yes

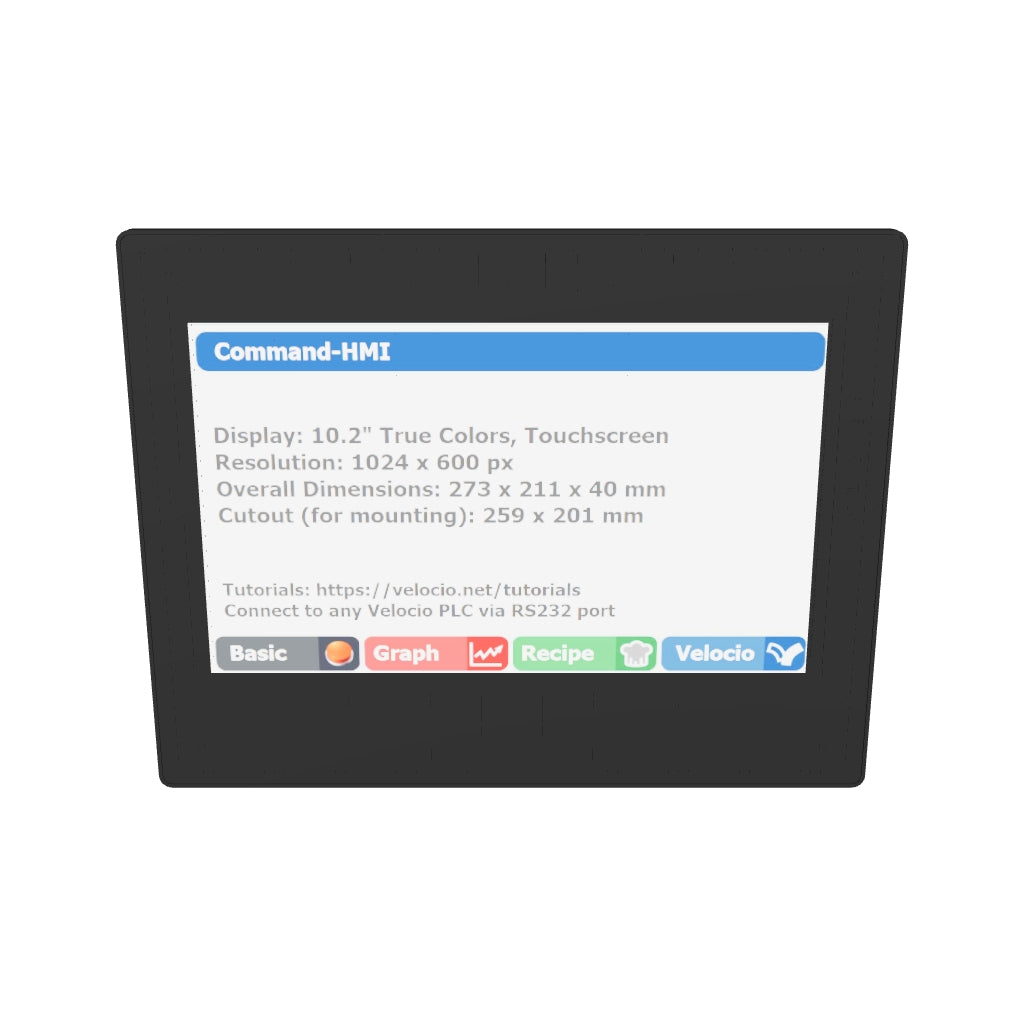

- Display
- 10.2 in
- Resolution
- 1024 x 600
- Brightness
- 450 cd/m²
- Ethernet
- Yes

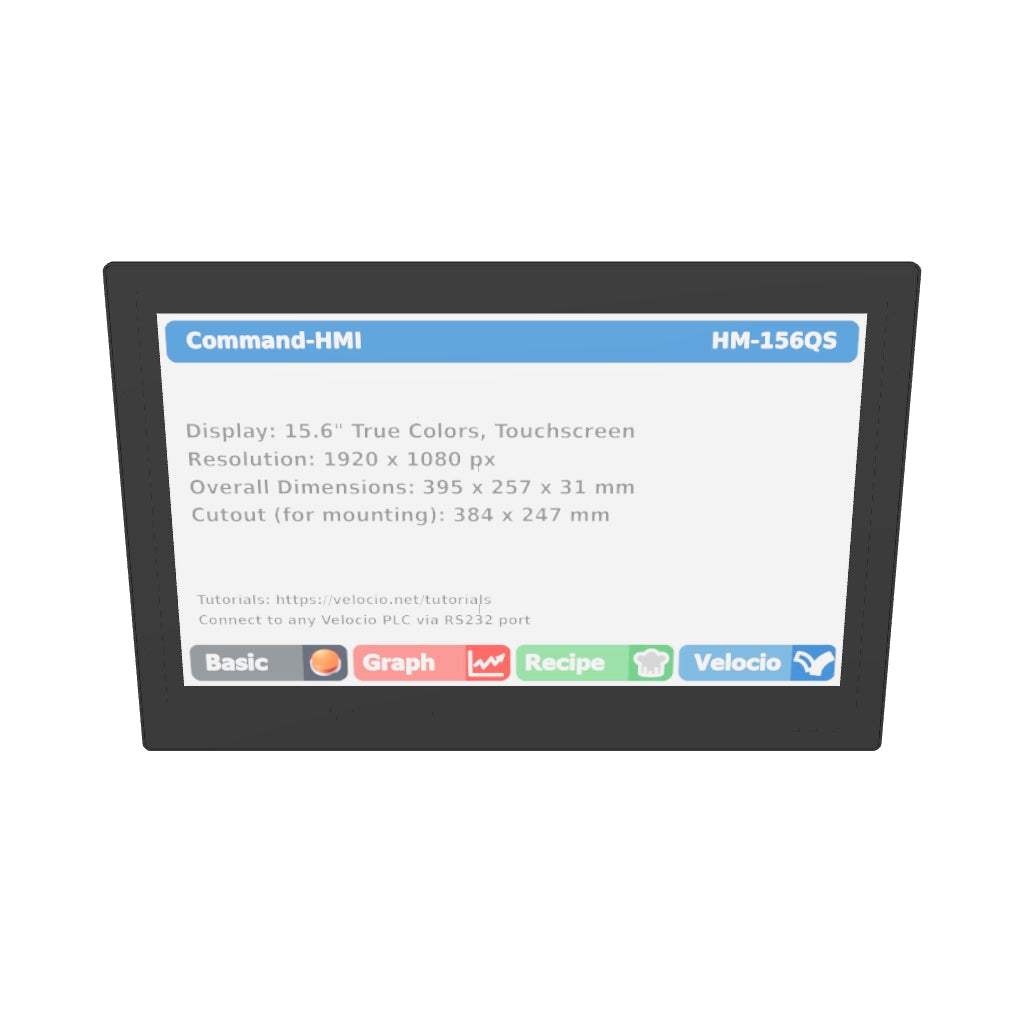

- Display
- 15.6 in
- Resolution
- 1920 x 1080
- Brightness
- 300 cd/m²
- Ethernet
- Yes
Model comparison
Find the right size for your machine.
| 4.3" | 7" | 10.2" | 15.6" | |
|---|---|---|---|---|
| Resolution | 480×272 | 1024×600 | 1024×600 | 1920×1080 |
| Ethernet | — | ✓ | ✓ | ✓ |
| RS232 | ✓ | ✓ | ✓ | ✓ |
| RS485/422 | ✓ | ✓ | ✓ | ✓ |
| USB Host | ✓ | ✓ | ✓ | ✓ |
| Front Protection | IP65 | IP65 | IP65 | IP65 |
| Power | 3 W | 4 W | 7 W | 10 W |
| Brightness | 400 cd/m² | 450 cd/m² | 450 cd/m² | 300 cd/m² |
| Contrast | 400:1 | 400:1 | 400:1 | 700:1 |
| Touch panel | Resistive | Resistive | Resistive | Resistive |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M |
| Dimensions | 139×86×31 mm | 203×145×35 mm | 273×211×39.5 mm | 395×257×31 mm |
| Panel cutout | 132×80 mm | 192×138 mm | 259×201 mm | 384×247 mm |
| Weight | 270 g | 700 g | 1050 g | 2.45 kg |
| Memory | 128 MB Flash + 128 MB DDR3 | 128 MB Flash + 128 MB DDR3 | 128 MB Flash + 128 MB DDR3 | 4 GB eMMC + 256 MB DDR3 |
| CPU | Dual-core A7 1 GHz | Dual-core A7 1 GHz | Dual-core A7 1 GHz | Cortex A7 1.2 GHz |
| Voltage | 12–24 V DC | 12–24 V DC | 24 V DC | 24 V DC |
| Operating temp | −20 to 55 °C | −20 to 55 °C | −20 to 55 °C | −20 to 55 °C |
