Rest the top end on the DIN rail
Hook the upper lip of the clip over the top edge of the rail and let the board hang at an angle.
TB06-35 Screw Terminal
$15.00
Sale price
$15.00
Regular price
Skip to product information
TB06-35 Screw Terminal
$15.00
Sale price
$15.00
Regular price
Screw termination for your Velocio PLC.
The TB06-35 Screw Terminal Board gives every Velocio PLC I/O port a clean, serviceable landing point for field wiring. Plug the included pre-terminated cable into the PLC, land your wires on the eight-position screw block, and snap the board onto 35 mm DIN rail.
- Termination: 8 screw terminals. Pin 1 through Pin 8, labeled J1.
- Wire size: 26–16 AWG. Solid or stranded field wiring.
- Mounting: 35 mm DIN rail. Or #8 bolts spaced 1 in apart.
- PLC connection: ribbon cable. Pre-terminated cable included.
Field wiring termination
Screw termination for your Velocio PLC.
The TB06-35 Screw Terminal Board gives every Velocio PLC I/O port a clean, serviceable landing point for field wiring. Plug the included pre-terminated cable into the PLC, land your wires on the eight-position screw block, and snap the board onto 35 mm DIN rail.
- Termination
- 8 screw terminals Pin 1 through Pin 8, labeled J1
- Wire size
- 26–16 AWG Solid or stranded field wiring
- Mounting
- 35 mm DIN rail Or #8 bolts spaced 1 in apart
- PLC connection
- Ribbon cable Pre-terminated cable included

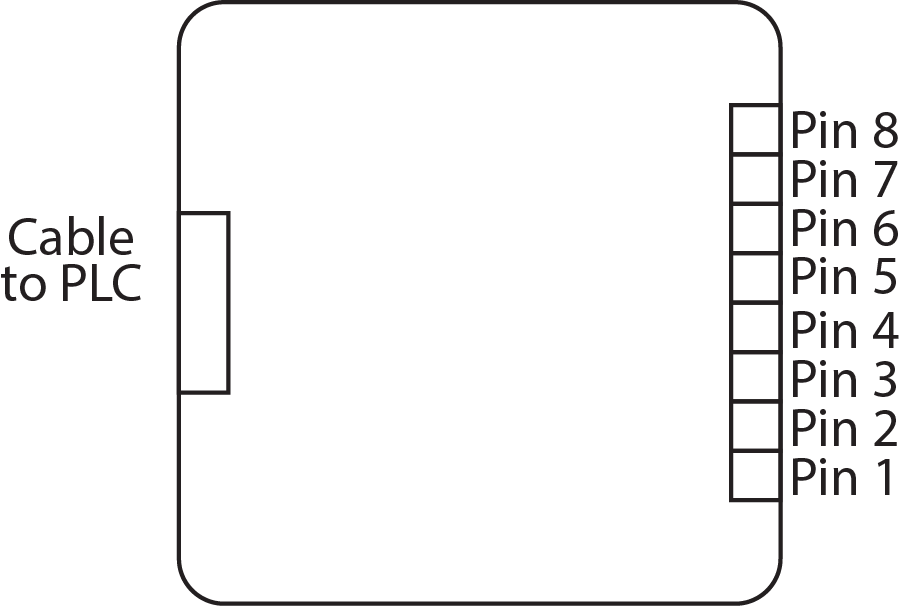

Straight-through pinout
Cable in on one side, Pin 1–8 out the other.
The board carries the PLC I/O port straight through to eight numbered screw terminals. The ribbon connector enters from the side facing the PLC, and the J1 screw block presents Pin 1 at the bottom through Pin 8 at the top.
- Cable to PLC: the included pre-terminated cable connects the board to the PLC I/O port.
- Eight positions: Pin 1 through Pin 8 map one-to-one to the port's I/O points.
- Labeled silkscreen: the board is marked
TB06 Termination Modulewith the J1 block identified.
Included cable
Plug the included 18" cable from your PLC to the terminal module.
Every terminal module ships with an 18-inch pre-terminated cable. Connect one end to the Ace or Branch IO port and the other to the terminal board—no custom harness required to get from controller to field wiring.
Two-step installation
DIN mount your terminal board.
The integrated clip mounts the board on standard 35 mm DIN rail without tools. If your panel has no rail, the board also bolts down with two #8 bolts or screws placed 1 inch apart.
Press the bottom end until it snaps
Rotate the board flat against the rail and press the lower end until the clip audibly snaps into place.
Specifications
Everything from the TB06-35 datasheet.
The screw terminal board is a passive termination module. There is no supply voltage, signal conditioning, or isolation to configure—it simply provides screw termination for the PLC I/O port.
- Terminal count
- 8 (Pin 1–Pin 8)
- Terminal wire size
- 26 to 16 AWG
- Terminal block reference
- J1
- Rail mounting
- 35 mm DIN rail
- Bolt mounting
- #8 bolts/screws, 1 in apart
- PLC interface
- Pre-terminated ribbon cable
- Signal conditioning
- None — passive pass-through
Engineering resources
Download the reference documents.
The one-page datasheet covers the pinout, wire size, and DIN mounting steps. The terminal module overview compares every board in the family.
One-page reference
TB06-35 datasheet
Pinout diagram, terminal wire size, and DIN rail mounting instructions.
Open TB06-35 datasheet
Compare the family
Terminal module overview
Screw, optocoupled input, relay output, and transistor output boards side by side.
