Field wiring

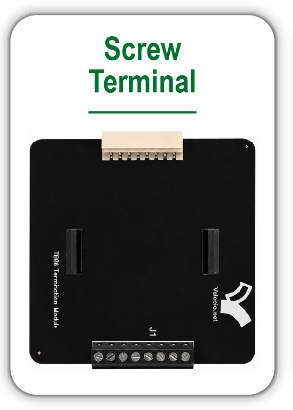

TB06-35 Screw Terminal
Provides screw termination for field wiring. Wire size 26 to 16 AWG.
From $15.00
Terminal Modules
Expand Ace IO with practical terminal modules.
All Ace PLCs include pluggable spring-cage connectors. Terminal modules add screw terminals, optocoupled inputs, relays, and higher-power sinking or sourcing transistor outputs—each with a DIN-rail mount and a pre-terminated cable.
- Mounting
- 35 mm DIN rail
- PLC connection
- Pre-terminated cable
- Compatible with
- Ace & Branch
- Modules
- 7 dedicated boards

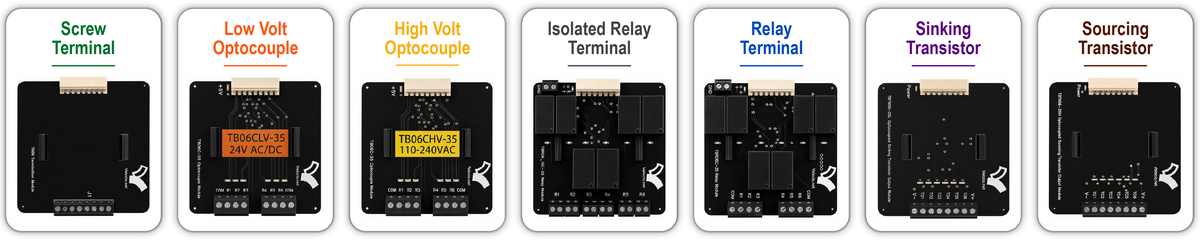

Module lineup
Choose the terminal module for your IO job.
Seven dedicated modules cover screw termination, low- and high-voltage optocoupled inputs, isolated and commoned relays, plus sinking and sourcing transistor outputs.
Input isolation

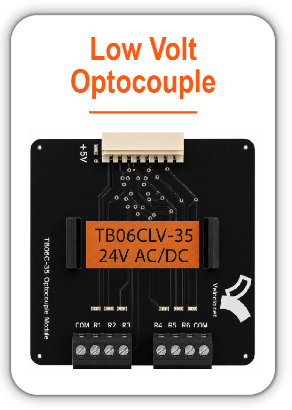

TB06CLV-35 Low Voltage Optocouple
Takes 24 V AC or DC inputs and converts them to PLC-compatible DC signals with optical isolation.
From $25.00
Input isolation

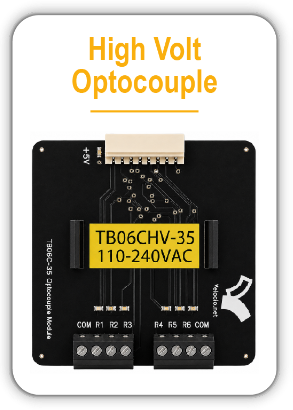

TB06CHV-35 High Voltage Optocouple
Takes 110 to 240 VAC inputs and converts them to PLC-compatible DC signals with optical isolation.
From $25.00
Relay outputs

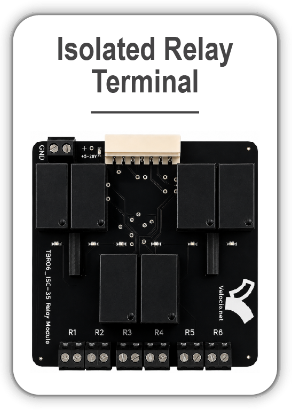

TBR06_ISO-35 Isolated Relay
Provides isolated relay contact outputs for digital outputs. Switch AC or DC power up to 5 A per channel.
From $29.00
Relay outputs

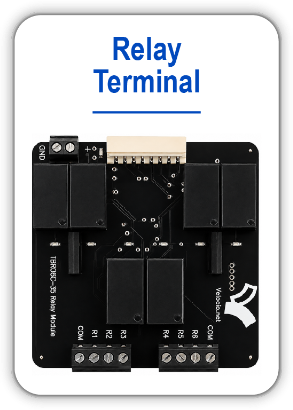

TBR06C-35 Relay Terminal
Six relays with three per common. Switch AC or DC power up to 5 A per channel, 10 A per common.
From $25.00
Transistor outputs

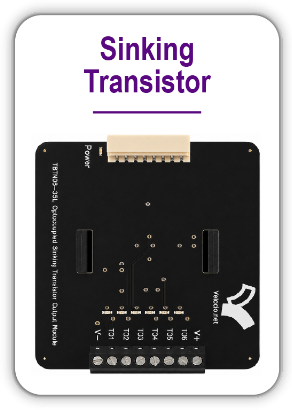

TBTN06-35L Sinking Transistor
Optically isolated sinking transistor outputs. Each output can sink up to 2 A, 10 A per module.
From $25.00
Transistor outputs

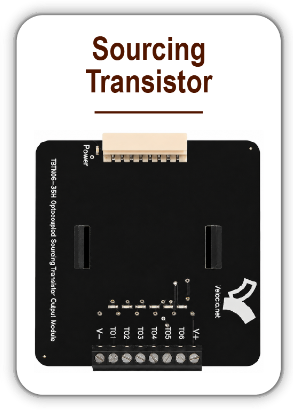

TBTN06-35H Sourcing Transistor
Optically isolated sourcing transistor outputs. Each output can source up to 2 A, 10 A per module.
From $25.00
Why terminal modules
Give field wiring the connectors and protection your panel needs.
Use terminal modules when spring-cage connectors are not enough—larger wire, isolation, status LEDs, relays, or higher-current transistor outputs.
Larger field wire
Screw terminal boards accept larger wire than the standard PLC spring-cage connectors—check the selected board datasheet for its full range.
Optocoupled isolation
Low- and high-voltage optocoupled input modules convert field signals and keep them electrically isolated from the PLC.
Relay switching
Choose isolated relays or three-per-common relay boards to switch AC or DC loads up to 5 A per channel.
Sinking or sourcing
Dedicated sinking and sourcing transistor modules provide optically isolated higher-power digital outputs.
Installation
Connect once, then wire the field side.
Each board includes a DIN-rail mount and a pre-terminated cable so the PLC side stays simple while the terminal side matches your panel wiring.
Plug into the PLC
Use the included pre-terminated cable to connect the terminal module to the matching Ace or Branch IO port.
Mount the board
Snap the board onto 35 mm DIN rail, or use the built-in mounts for #8 screws or bolts spaced one inch apart.
Wire the field side
Land field wiring on the screw terminals and leave the PLC-side connection on the prewired cable harness.
