Switch AC or DC loads directly from your PLC.

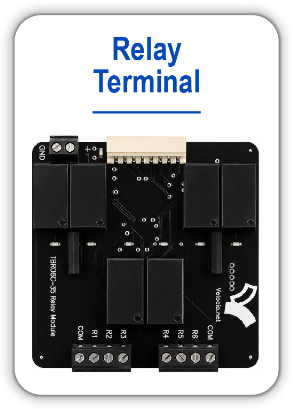

The TBR06C-35 Relay Terminal Board gives Velocio PLC digital outputs six relay contacts that switch AC or DC power. Each relay handles up to 5 amps, with up to 10 amps total per shared common, and the whole board operates under PLC control.
- Relay channels: 6 contacts. R1 through R6, two commons.
- Per relay: 5 A max. 10 A max per common.
- Contact rating: 250 VAC / 30 VDC.
- Board power: 5.1–28 VDC external supply, up to 300 mA. This board needs an external supply.
Relay contact outputs
Switch AC or DC loads directly from your PLC.
The TBR06C-35 Relay Terminal Board gives Velocio PLC digital outputs six relay contacts that switch AC or DC power. Each relay handles up to 5 amps, with up to 10 amps total per shared common, and the whole board operates under PLC control.
- Relay channels
- 6 contacts R1 through R6, two commons
- Per relay
- 5 A max 10 A max per common
- Contact rating
- 250 VAC / 30 VDC Maximum switched voltage
- Board power
- 5.1–28 VDC External supply, up to 300 mA
Two groups of three
Six relay contacts sharing two commons.

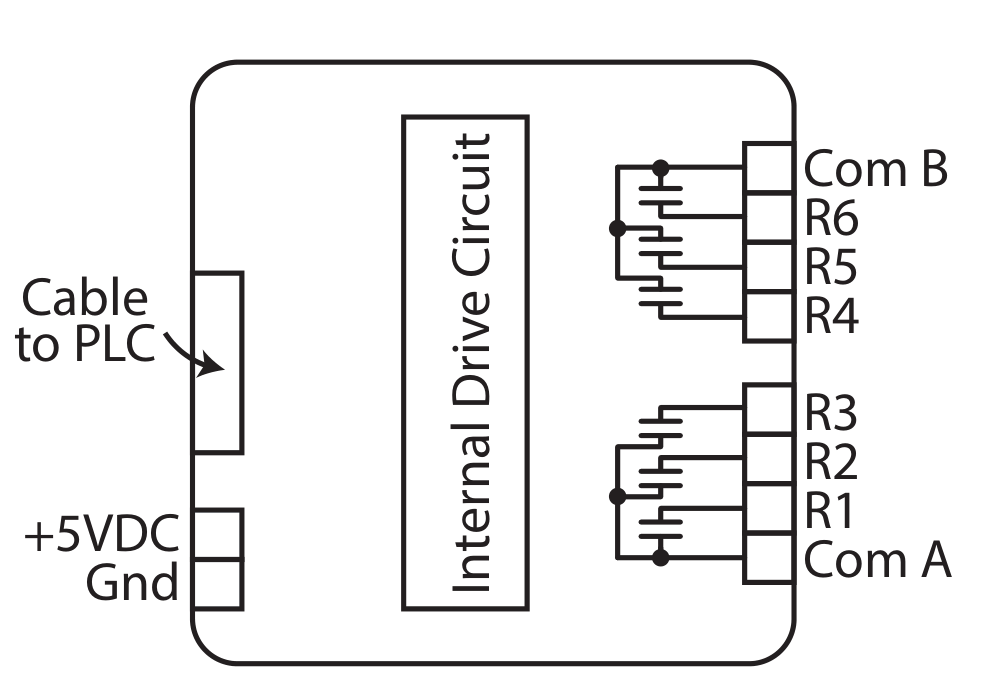

An internal drive circuit takes the PLC output signals and closes the corresponding relay. The contacts are arranged as two groups: R1 through R3 switch against Com A, and R4 through R6 switch against Com B.
- AC or DC loads: dry relay contacts switch either, up to 250 VAC or 30 VDC.
- Two shared commons: Com A serves R1–R3 and Com B serves R4–R6.
- Separate supply terminals: Gnd and +5VDC power the relay coils.
- PLC controlled: each contact follows its assigned digital output.
Included cable
Plug the included 18" cable from your PLC to the terminal module.
Every terminal module ships with an 18-inch pre-terminated cable. Connect one end to the Ace or Branch IO port and the other to the terminal board—no custom harness required to get from controller to field wiring.
Two-step installation
DIN mount your terminal board.
The integrated clip mounts the board on standard 35 mm DIN rail without tools. If your panel has no rail, the board also bolts down with two #8 bolts or screws placed 1 inch apart.
Press the bottom end until it snaps
Rotate the board flat against the rail and press the lower end until the clip audibly snaps into place.
No DIN rail?
Bolt the board directly to the panel.
Two mounting holes accept #8 bolts or screws placed 1 inch apart, so the board can be fastened to a subpanel or enclosure wall instead of a rail.
Specifications
Everything from the TBR06C-35 datasheet.
Unlike the passive and optocoupled input boards, the relay board needs its own supply to drive the coils. Bring 5.1 to 28 VDC to the Gnd and +5VDC terminals in addition to the PLC cable.
- Relay channels
- 6 (R1–R6)
- Commons
- 2 (Com A, Com B)
- Max current per relay
- 5 A
- Max current per common
- 10 A
- AC contact maximum
- 250 VAC
- DC contact maximum
- 30 VDC
- Board supply voltage
- 5.1 to 28 VDC
- Board supply current
- Up to 300 mA
- Terminal wire size
- 26 to 16 AWG
- Rail mounting
- 35 mm DIN rail
- Bolt mounting
- #8 bolts/screws, 1 in apart
Engineering resources
Download the reference documents.
The one-page datasheet covers the contact layout, contact ratings, supply requirements, and DIN mounting steps. The terminal module overview compares every board in the family.
One-page reference
TBR06C-35 datasheet
Contact layout, contact ratings, board supply requirements, and DIN rail mounting instructions.
Open TBR06C-35 datasheet
Compare the family
Terminal module overview
Screw, optocoupled input, relay output, and transistor output boards side by side.
View all terminal modules
